Wheels & Tyres
Standard GTA wheels and tyres are 15" front and rear in 4 stud fitment.
Unusually the cars are fitted with three bolts and one nut/stud from the factory. Locking nuts should be fitted to the single stud to avoid three different fittings per wheel. Almost all locking wheel nut catalogues incorrectly list locking bolts for the GTA. You need a 1.25 fine thread nut with a taper seat.
Original wheels are usually the Turbo or 'turbine' style, however some cars were fitted with rare BBS (genuine) two piece spoked wheels. Early normally aspirated cars had a different style rim but these took metric tyres which are now almost impossible to obtain. All of these wheels are a little small by today's standards and most owners usually want to upgrade. This also widens up the choice of tyres which is now very limited for the standard rims.
225/50/15 and 255/45/15 are both correct factory sizes for the rear wheels. The wider 255/45/15 patterns are now extremely expensive.
Larger modern tyre sizes are considerably cheaper than these specialist rear tyres for the GTA.
Le Mans cars were fitted with 16" front and 17" rear BBS style (ACT) two piece rims. These can be fitted to standard cars but the offset is incorrect. The geometry is affected and the wheels protrude from the arches.
Standard A610 wheels are 16" front and rear and were available in 'Turbine' and Spider styles. (The rear wheels were one inch wider than the Spider version and are not interchangeable). A610 wheels are 5 stud fitment. Aftermarket options are similar to the GTA.
| Vehicle | Front Wheel | Front Tyre | Rear Wheel | Rear Tyre |
| GTA (Atmo)* |
190/55 R 365 |
220/55 R 365 | ||
| GTA (Turbo) | 6 x 15 | 195/50/15 | 8.5 x 15 | 225/50/15 255/45/15 |
| GTA Le Mans | 8 x 16 | 205/45/16 | 10 x17 | 255/40/17 |
| A610 | 7 x 16 | 205/45/16 | 9 x16 | 245/45/16 |
| Spider | 8 x16 |
* 99% of UK GTA Atmos are fitted with the optional Turbo wheels and tyres.

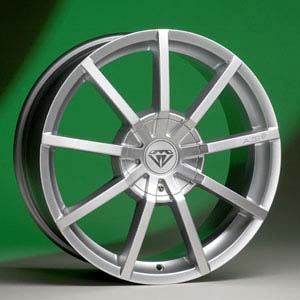

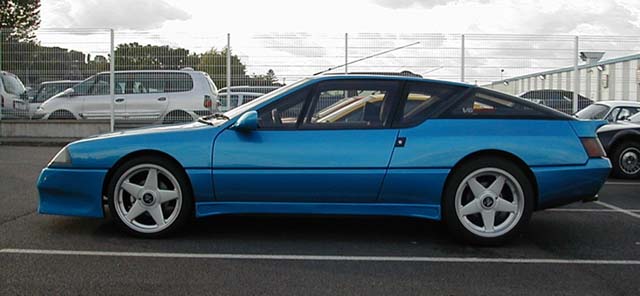

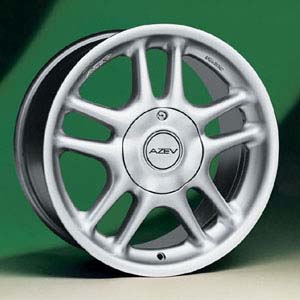

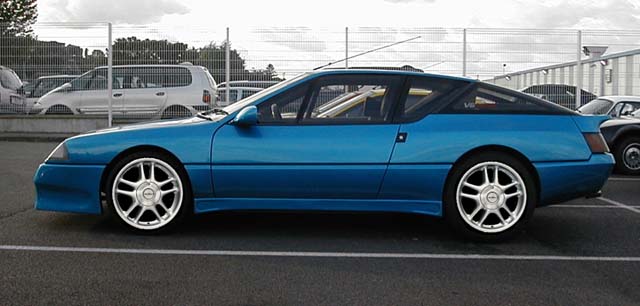

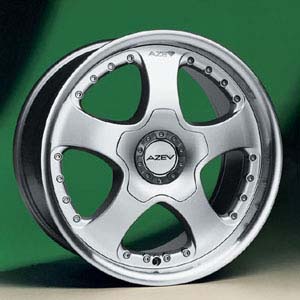

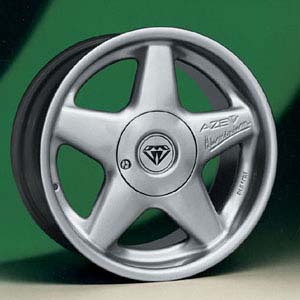

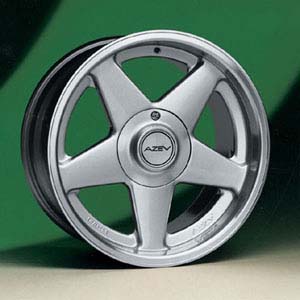

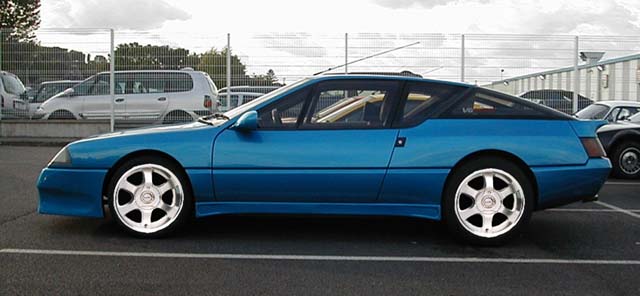

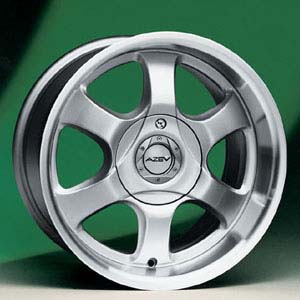

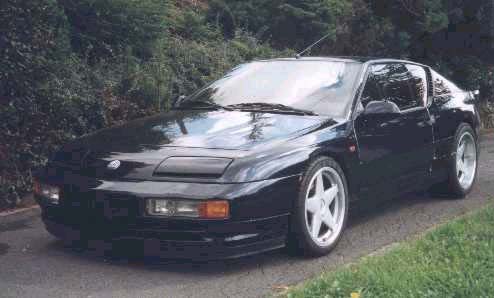

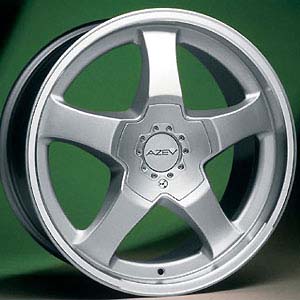

AZEV are the most easily available replacement wheel choice. See the most popular styles below.
Front 16" or 17" Recommended Tyre 195/45/16 or 205/40/17
Rear 17" or 18" Recommended Tyre 255/40/17 or 255/35/18
Silver only
|
|
|
|||||||||
|
|
|
|||||||||
|
|
|
|||||||||
|
|
|
|||||||||
|
|
|
|
|||||||||
Wheels only 17" (1 piece) From £695 + shipping (set of 4)Price increase expected in June 2005
Wheels only 17" (2 piece) From £1295 + shipping (set of 4)Price Increase expected in June 2005
Wheels + Tyres (fitted & balanced) POA (brand dependent)
Azev machined adaptors £100 pair
Rimstock Diablos can be specially machined on request:
Front 17" Recommended Tyre 205/40/17
Rear 18" Recommended Tyre 255/35/18
Available in silver, white & tungsten grey.
|
|
||||||
|
|
|
||||||
Wheels only 17" & 18" From £595 + shipping (set of 4) Includes new bolts.
Wheels + Tyres (fitted & balanced) POA (brand dependent)

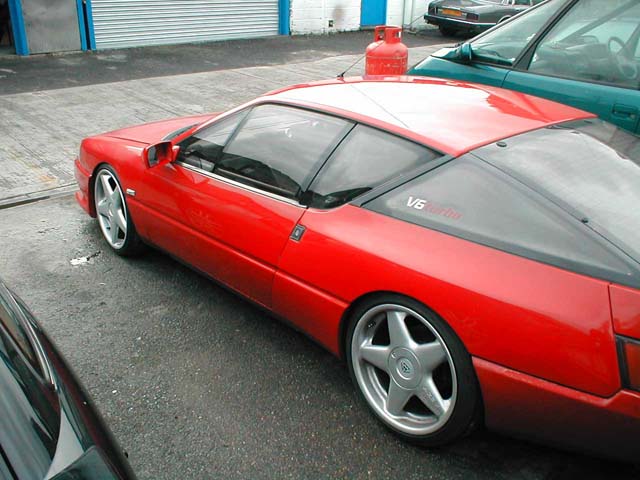

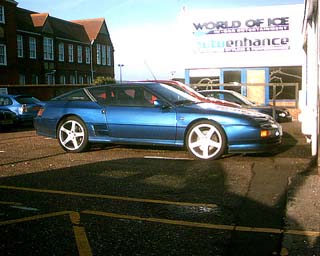

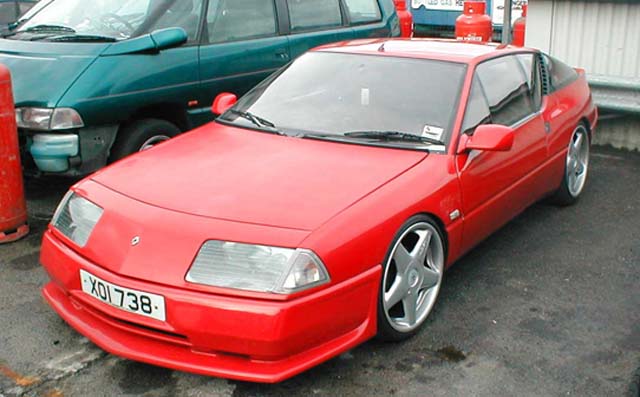

For those who want something a little larger it is possible to fit 18" wheels all round. You may need to trim the front wing return to avoid rubbing.
Front 18" Recommended Tyre 215/35/18
Rear 18" Recommended Tyre 255/35/18
|
|
|
|||||||||
|
|
|
|
|||||||||
Wheels only 18" (1 piece) From £845 + shipping (set of 4)Price increase expected in June 2005
Wheels only 18" (2 piece) From £1425 + shipping (set of 4)Price increase expected in June 2005
Wheels + Tyres (fitted & balanced) POA (brand dependent)
BRAND NEW
TYRES
Any size or brand you like including UK delivery straight to your door:
Example prices:
GTA standard front 195/50/15 Toyo Proxes
T-1 £35 each
GTA standard rear 225/50/15 Dunlop SP9000
£115 each
A610 standard front 205/45/16 Pirelli P
Zero Nero £90 each
A610 standard rear 245/45/16 Pirelli P
Zero Nero £120 each
GTA 17" Wheels Front 205/40/17 Toyo
Proxes T-1 £70 each Pirelli P Zero Nero
£85 each
GTA 17" Wheels Rear 255/40/17 Hankook Ventus Sport 104
£75 each Yokohama AVS Sport
£120 each
If you've had a better price or a quote on a different size or brand give me a
call & I'll try and beat it.
Please note that the tyre prices quoted are approximate and change on a daily basis.
.
